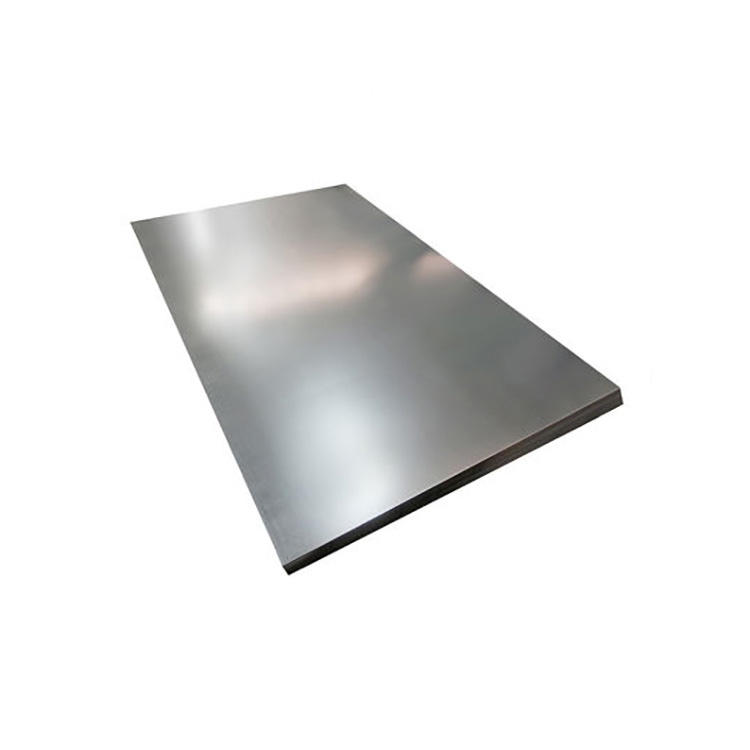

SA516Gr70 Pressure Vessel Steel Plate

ASME SA516 standard specification for pressure vessel plates, carbon steel for moderate and lower- temperature service.

WhatsApp：+86 15275315165

Email：Irene@shouyuansteel.com

Product Description

SA516Gr70 Pressure Vessel Steel Plate Description

ASME SA516 standard specification for pressure vessel plates, carbon steel for moderate and lower- temperature service.
ASME SA516 plates 40mm and under in thickness is normally supplied in the as-rolled condition. The plates may be ordered normalized or stress relieved, or both. ASME SA516 grade plates over 40mm in thickness shall be normalized.

Product Parameters

Product Name	sa516gr70 Pressure Vessel Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

SA516 Grade 70 Chemical Composition
Grade SA516 grade 70	The Element Max(%)
	C	Si	Mn	P	S
Thick<12.5mm	0.27	0.13-0.45	0.79-1.30	0.035	0.035
Thick12.5-50mm	0.28	0.13-0.45	0.79-1.30	0.035	0.035
Thick50-100mm	0.30	0.13-0.45	0.79-1.30	0.035	0.035
Thick100-200mm	0.31	0.13-0.45	0.79-1.30	0.035	0.035
Thick-200mm	0.31	0.13-0.45	0.79-1.30	0.035	0.035

Mechanical Properties

Grade	SA516 Grade 70 Mechanical Property
	Thickness	Yield	Tensile	Elongation
SA516 Grade 70	mm	Min Mpa	Mpa	Min %
	6-50	260	485-620	21%
	50-200	260	485-620	17%

Physical Performance

Physical Performance	Metric	Imperial
Density	7.80 g/cc	0.282 lb/in³

Scope of Application

ASTM A202 boiler vessel plate is widely used in oil and gas engineering projects, for the manufacture of pressure vessels, boilers, storage tanks and heat exchangers and other equipment.

Product Application

Packaging and shipping

Factory Display

FAQ

1. What products do you supply?
We supply carbon steel, galvanized steel, pre-painted steel, stainless steel, copper, aluminum, and structural steel sections. Our product range includes sheets, coils, pipes, bars, strips, angles, channels, I-beams, and H-beams.

2. Can you provide customized specifications?
Yes. We can supply products in different materials, grades, thicknesses, widths, lengths, and surface finishes. Please send us your detailed specifications so we can confirm availability.

3. What processing services do you offer?
Depending on the product and project requirements, we can provide cutting, slitting, custom sizing, and other processing services. Please provide your drawings, dimensions, tolerances, and processing requirements with your inquiry.

4. How do you ensure product quality?
Products are supplied according to the material, dimensions, specifications, and quality requirements confirmed in the order. Please inform us before ordering if your project requires specific inspections, tests, or documents.
