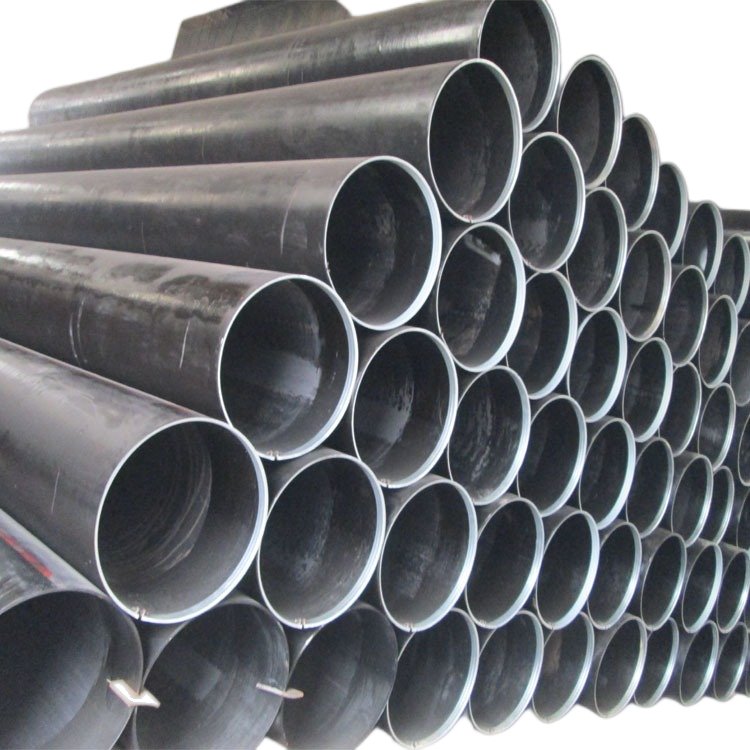

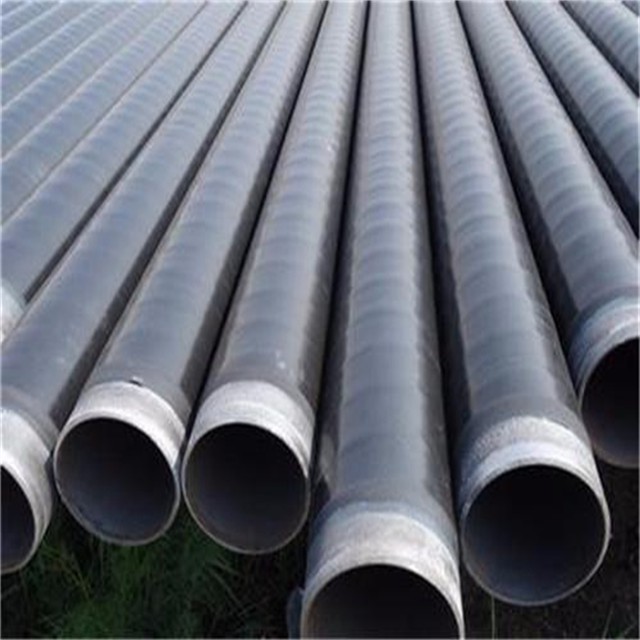

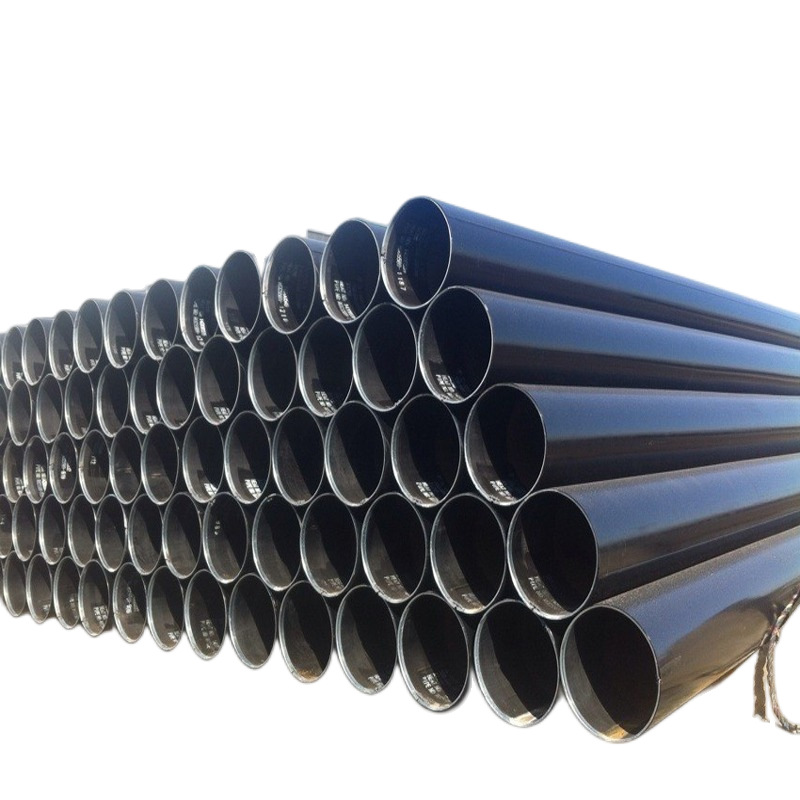

API 5CT Steel Pipe

API is an acronym for the American Petroleum Institute and is considered the most authoritative and comprehensive principle in the oil and gas industry. API 5B and API 5CT are mainly used for oil casing. API 5CT oil casing can be divided into seamless steel pipe and welded steel pipe.

WhatsApp：+86 15275315165

Email：Irene@shouyuansteel.com

Product Description

API 5CT Steel Pipe Description

API 5CT is a standard technical specification of steel pipes for casing and tubing in oil or gas industries. It can be used in oil or gas drilling and conveying. Commonly used oilfield API-5CT casing steel grades are J55, K55, N80-1, N80Q, P110. Casings are mostly used in oil well drilling. According to the API-5CT standard, pipes can be divided into STC (short thread), LTC (long thread) and BTC (support thread) and their joints.

Product Parameters

Product Name	API 5CT Steel Pipe
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer Diameter	Seamless: 1/4"-36"	Welding: 21.3mm-3620mm
	Round Tube: 1/2"-10"	Square Tube/Rectangular Tube: 15x15mm-400x600mm
Wall Thickness	Seamless: 1.25mm-50mm	Welding: 1.65mm-65mm
Length	3-12 meters, Support customization
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Chemical Composition

Grade	C ≤	Si ≤	Mn ≤	P ≤	S ≤	Cr ≤	Ni ≤	With	V ≤	Als ≤
API 5CT J55	0.34-0.39	0.20-0.35	1.25-1.50	0.020	0.015	0.15	0.20	0.20	/	0.020
API 5CT K55	0.34-0.39	0.20-0.35	1.25-1.50	0.020	0.015	0.15	0.20	0.20	/	0.020
API 5CT N80	0.34-0.38	0.20-0.35	1.45-1.70	0.020	0.015	0.15	/	/	0.11-0.16	0.020
API 5CT L80	0.15-0.22	1.00	0.25-1.00	0.020	0.010	12.0-14.0	0.20	0.20	/	0.020
API 5CT J P110	0.26-035	0.17-0.37	0.40-0.70	0.020	0.010	0.80-1.10	0.20	0.20	0.08	0.020

Mechanical Properties

Grade	Yield Strength (Mpa)	Tensile Strength (Mpa)
API 5CT J55	379-552	≥ 517
API 5CT K55	≥ 655	≥ 517
API 5CT N80	552-758	≥ 689
API 5CT L80	552-655	≥ 655
API 5CT P110	758-965	≥ 862

Scope of Application

API 5CT oil casing is mainly used to transport oil, natural gas, coal gas, water and other liquids, gases.

Product Application

Packaging and shipping

Factory Display

FAQ

1. What products do you supply?
We supply carbon steel, galvanized steel, pre-painted steel, stainless steel, copper, aluminum, and structural steel sections. Our product range includes sheets, coils, pipes, bars, strips, angles, channels, I-beams, and H-beams.

2. Can you provide customized specifications?
Yes. We can supply products in different materials, grades, thicknesses, widths, lengths, and surface finishes. Please send us your detailed specifications so we can confirm availability.

3. What processing services do you offer?
Depending on the product and project requirements, we can provide cutting, slitting, custom sizing, and other processing services. Please provide your drawings, dimensions, tolerances, and processing requirements with your inquiry.

4. How do you ensure product quality?
Products are supplied according to the material, dimensions, specifications, and quality requirements confirmed in the order. Please inform us before ordering if your project requires specific inspections, tests, or documents.
