Product Description

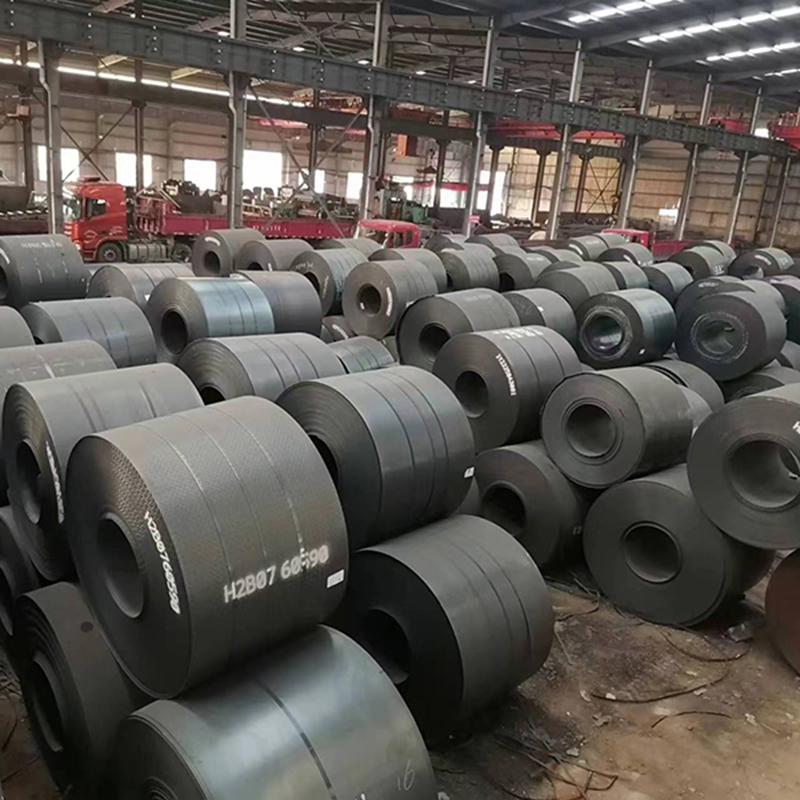

1045 Cold Rolled Steel Coil

AISI 1045 is a medium carbon steel designed to be able to function in areas requiring greater strength and hardness. This steel possesses excellent size accuracy, concentricity, and straightness which together minimize wear in high speed applications. AISI 1045 can be formed into turned, ground and polished coils that can be machined unsymmetrically with limited distortion. They are often used in the production of gears, shafts, axles, bolts, studs and machine parts.


Product Parameters

Product Name

1045 Cold Rolled Steel Coil

Production Process

Hot Rolling, Cold Rolling

Material Standards

AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.

Width

100mm-3000mm

Length

1m-12m, or Customized Size

Thickness

0.1mm-400mm

Delivery Conditions

Rolling, Annealing, Quenching, Tempered or Standard

Surface Process

Ordinary, Wire Drawing, Laminated Film



Chemical Composition

Element Content (%)
Carbon, C 0.43-0.50
Manganese, Mn 0.60-0.90
Sulfur, S 0.05 (max)
Phosphorous, P 0.04 (max)
Iron, Fe Balance



Mechanical Properties

Properties Metric Imperial
Tensile strength 585 MPa 84800 psi
Yield strength 450 MPa 65300 psi
Modulus of elasticity 200 GPa 29000 ksi
Shear modulus (typical for steel) 80 GPa 11600 ksi
Poisson’s ratio 0.29 0.29
Elongation at break (in 50 mm) 12 % 12 %
Hardness, Brinell 163 163
Hardness, Knoop (converted from Brinell hardness) 184 184
Hardness, Rockwell B (converted from Brinell hardness) 84 84
Hardness, Vickers (converted from Brinell hardness) 170 170



Scope of Application

The following are the application areas of AISI 1045 carbon steel:

● Bolts
● Studs
● Gears
● Axles
● Shafts
● Machine parts.
