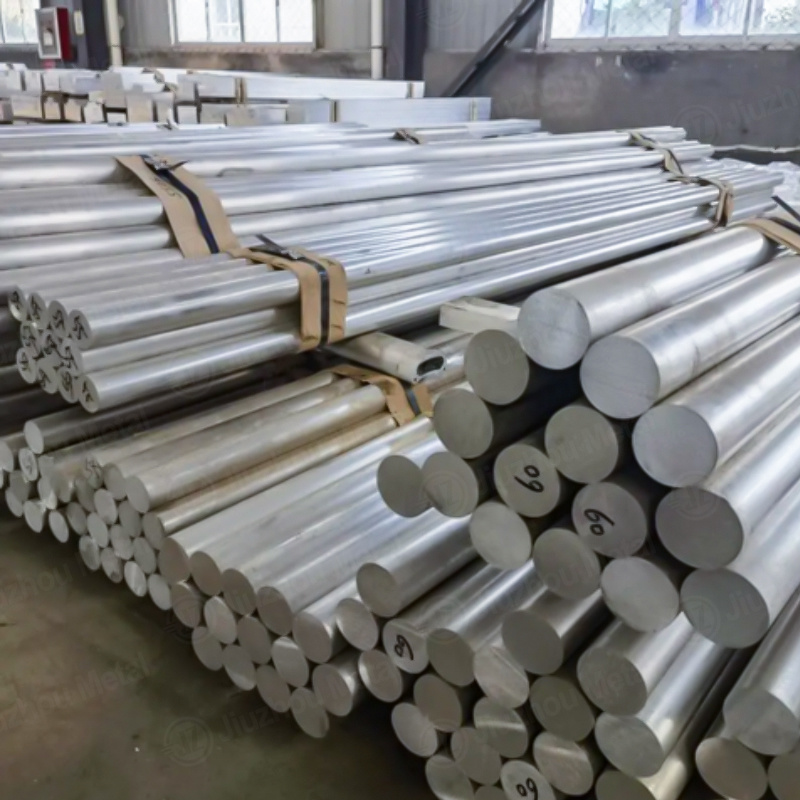

3003 Aluminum Bar

3003 aluminum bar is a commonly used product in the aluminum-manganese alloy series. This material has excellent anti-rust properties and is also called anti-rust aluminum bar with the addition of manganese alloy element. It is often used for processing parts and components that need good formability, high corrosion resistance and good weldability.

WhatsApp：+86 15275315165

Email：Irene@shouyuansteel.com

Product Description

3003 Aluminum Bar Description

3003 aluminum bar is of the most widely used anti-rust aluminum so far. The strength of this alloy is slightly higher than industrial pure aluminum and it cannot be strengthened by heat treatment. Therefore, cold working methods are used to improve its mechanical properties. It is mainly used for low-load parts that require high plasticity and good weldability and work in liquid or gas media, such as fuel tanks, gasoline or lubricating oil conduits, various liquid containers and other small-load parts made by deep drawing. 3003 aluminum bars are commonly used in ships, warships, vehicle materials, automobile and aircraft plate welding parts, pressure vessels that require strict fire protection.

Product Parameters

Diameter	5-650mm or customized	Length	100-2000mm or customized
Certificate	ISO, SGS, BV
Standard	JIS, AISI, ASTM, GB, DIN, EN, etc.
Brand	1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc. 6000 Series: 6061, 6063, 6082, 6A02, etc. 7000 Series: 7050, 7475, 7075, etc. 8000 Series: 8A06, 8011, 8090, etc.
Surface	Coating, Embossing, Drawing, Polishing, Anodizing, etc.
OEM Service	Punching, Cutting special size, Making flat surface, Surface treatment, etc.
Delivery Time	Received 30% after deposit 7-15 working days
Application	Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware and other fields
Sample	Free Offers Sample
Packaging	Strapping, Plastic bag, Film, Wooden pallet Standard seaworthy export packing or according to customer requirement

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others: Each	Others: Total	Al: Min.
1050	0.25	0.40	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.50
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.60
1070	0.20	0.25	0.04	0.03	0.03	-	0.04	0.03	0.05	-	99.70
1100	0.95 Si Fee		0.05~0.20	0.05	-	-	0.1	-	0.05	0.15	99.0
2014	0.5~1.2	0.7	3.9~5.0	0.4~1.2	0.2~0.8	0.10	0.25	0.15	0.05	0.15	Allowance
2017	0.2~0.8	0.7	3.5~4.5	0.4~1.0	0.4~0.8	0.10	0.25	0.15	0.05	0.15	91.5 - 95.5
2024	0.50	0.50	3.8~4.9	0.3~0.9	1.2~1.8	0.10	0.25	0.15	0.05	0.15	Allowance
3003	0.60	0.70	0.05~0.20	1.0~1.5	-	-	0.10	-	0.05	0.15	Allowance
3A21	0.60	0.70	0.20	1.0-1.6	0.05	-	0.15	0.1-0.2	-	-	Allowance
3004	0.30	0.70	0.25	1.0~1.5	0.8~1.3	-	0.25	-	0.05	0.15	Allowance
3005	0.60	0.70	0.30	1.0~1.5	0.2~0.6	0.10	0.25	0.10	0.05	0.15	Allowance
3105	0.60	0.70	0.30	0.3~0.8	0.2~0.8	0.20	0.40	0.10	0.05	0.15	Allowance
5005	0.30	0.70	0.20	0.20	0.5~1.1	0.1	0.25	-	0.05	0.15	Allowance
5052	0.25	0.40	0.10	0.10	2.2~2.8	0.15~0.35	0.10	-	0.05	0.15	Allowance
5754	0.40	0.40	0.10	0.50	2.6~3.6	0.30	0.20	0.15	0.05	0.15	Allowance
5A05	0.50	0.50	0.10	0.3-0.6	4.8-5.5	-	0.20	-	0.05	0.05	Allowance
5083	0.40	0.40	0.10	0.4~1.0	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	Allowance
6061	0.40~0.8	0.70	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	Allowance
6082	0.70~1.3	0.50	0.10	0.4~1.0	0.6~1.2	0.25	0.20	0.10	0.05	0.15	Allowance
7075	0.40	0.50	1.2~2.0	0.30	2.1~2.9	0.18~0.28	5.1~6.1	0.20	0.05	0.15	Allowance

Mechanical Properties

Tensile Strength

(MPa)

Test Stress

(MPa)

Hardness

Elongation Rate

(%)

95-135

≥ 35

Physical Performance

Density	Melting Point	Thermal Expansion	Thermal Conductivity	Resistivity
2.73 Kg/m³	655 °C	23.1(10 -6/℃)	190 W/m.K	0.034× 10-6Ω.m

Annealing State

Brand	Annealing State
1xxx: 1050, 1050A, 1060, 1100	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454	O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082	T4, T6, T451, T651
2xxx: 2024	T3, T351, T4
7xxx: 7075	T6, T651

Scope of Application

Aluminum Uses And Application Area
Food Packaging	Beverage can ends, cans, bottle caps, etc.
Building	Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
Transportation	Auto parts, passenger car bodies, aviation ships and air cargo containers.
Electronic Equipment	Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer Goods	Umbrellas, cooking utensils, sports equipment, etc
Other	Military, color coated aluminum plate

Product Application

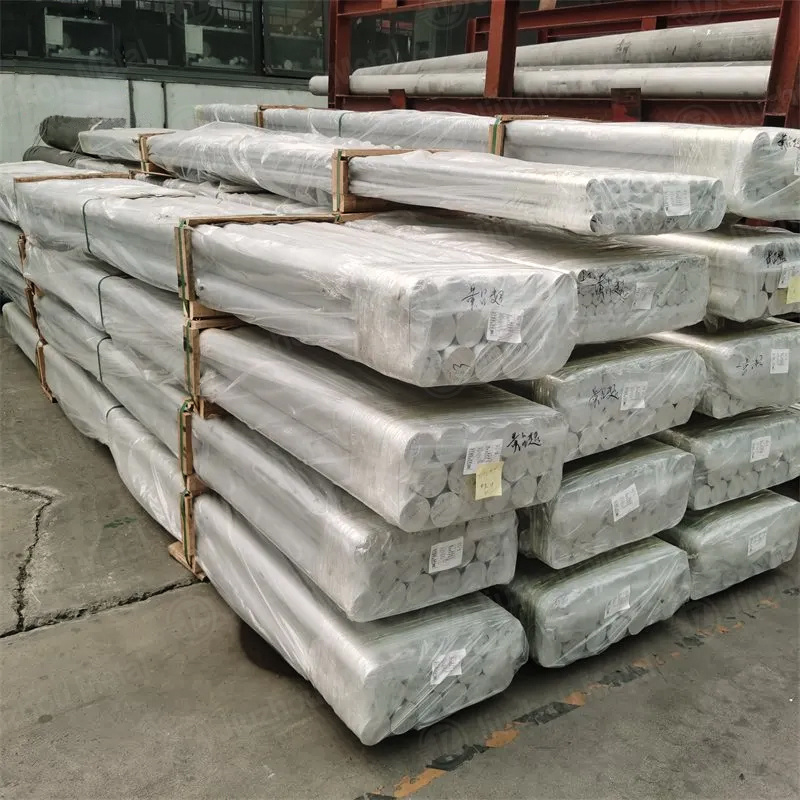

Packaging and shipping

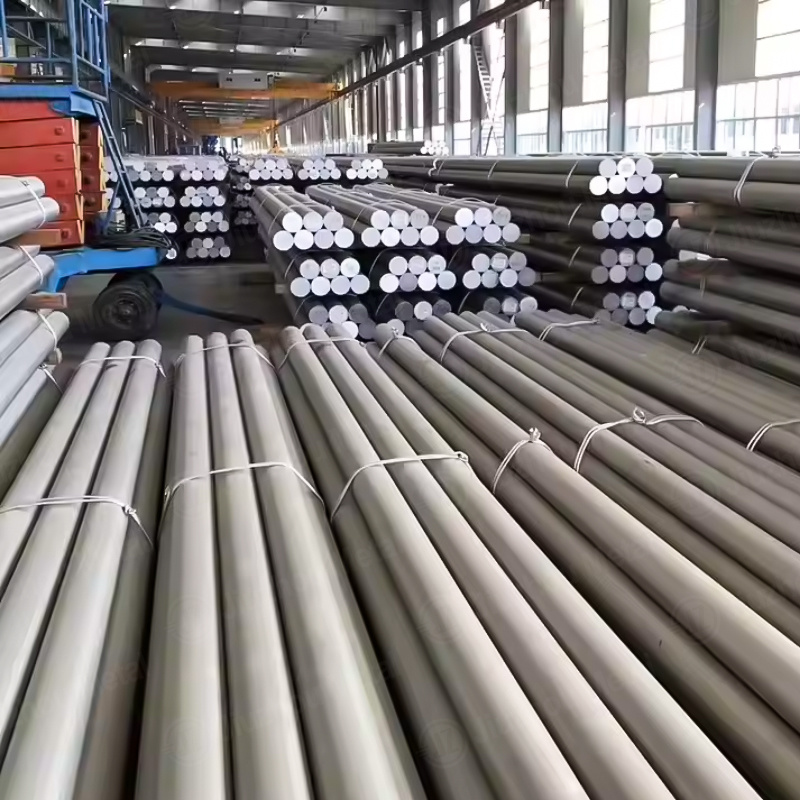

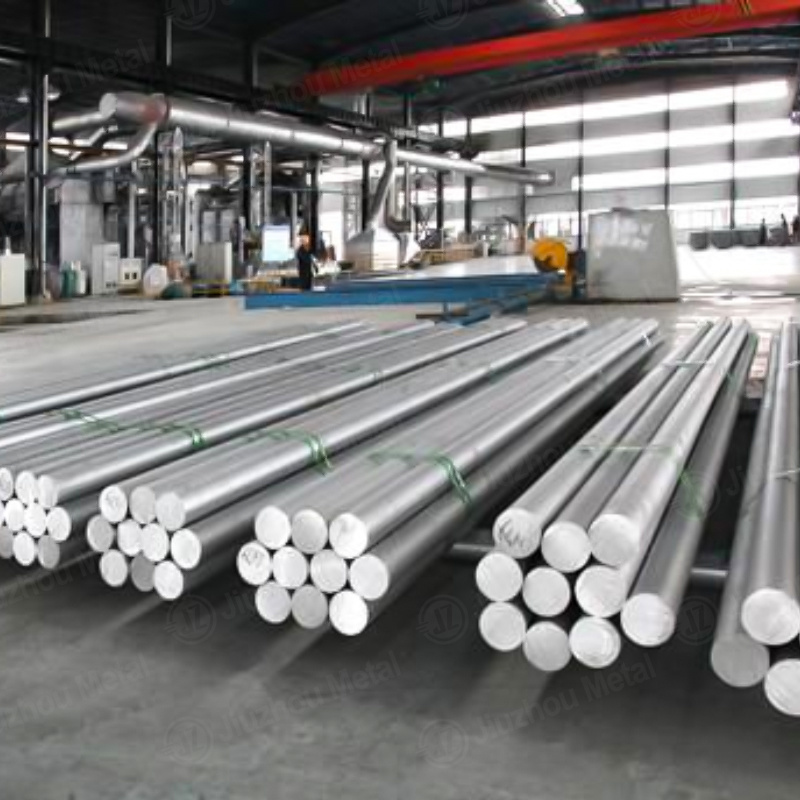

Factory Display

FAQ

1. What products do you supply?
We supply carbon steel, galvanized steel, pre-painted steel, stainless steel, copper, aluminum, and structural steel sections. Our product range includes sheets, coils, pipes, bars, strips, angles, channels, I-beams, and H-beams.

2. Can you provide customized specifications?
Yes. We can supply products in different materials, grades, thicknesses, widths, lengths, and surface finishes. Please send us your detailed specifications so we can confirm availability.

3. What processing services do you offer?
Depending on the product and project requirements, we can provide cutting, slitting, custom sizing, and other processing services. Please provide your drawings, dimensions, tolerances, and processing requirements with your inquiry.

4. How do you ensure product quality?
Products are supplied according to the material, dimensions, specifications, and quality requirements confirmed in the order. Please inform us before ordering if your project requires specific inspections, tests, or documents.
