Name: 1070 Aluminum Bar
SKU: 0

HOME > PRODUCTS > Aluminum > Aluminum Bar > 1070 Aluminum Bar

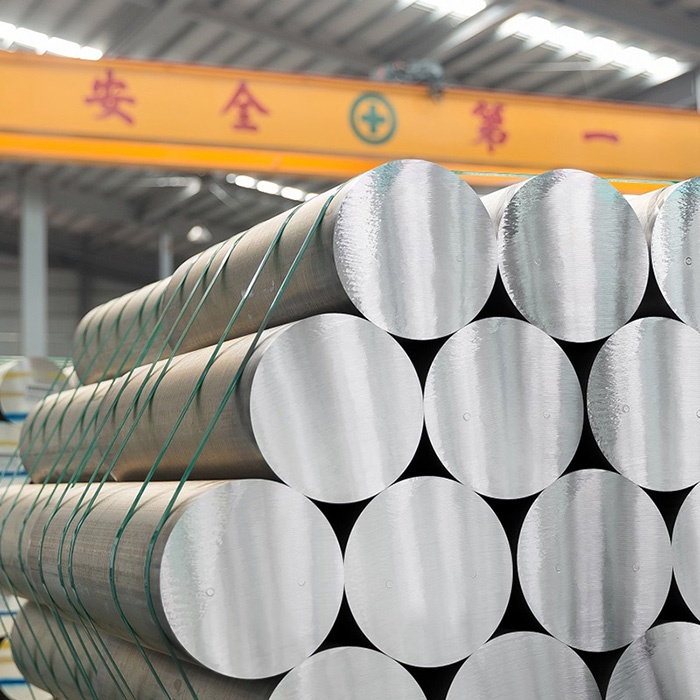

1070 Aluminum Bar

1070 aluminum bar has over 99.7% aluminum content, and minor other impurity elements. So 1070 aluminum bar has good electrical conductivity properties. 1070 aluminum alloy can be formed, cut, and bent through various processing techniques such as cold working and hot working. 1070 aluminum bar is suitable for manufacturing parts with various complex shapes requiring precision.

WhatsApp：+86 15275315165

Email：Irene@shouyuansteel.com

Product Description

1070 Aluminum Bar Description

1070 aluminum bar is made from a pure aluminium alloy as a wrought alloy with a high corrosion resistance and an excellent brazing ability. The complementary elements of 1070 aluminium alloy include aluminium, iron, silicon, zinc, vanadium, copper, titanium, magnesium, and manganese. It has remarkable plasticity and ductility due to the high purity of 1070 aluminum alloy. 1070 aluminum bar has good corrosion resistance and is especially suitable for components, devices and structures that work in hot and humid environments, such as chemical equipment, marine equipment, etc. Lastly, 1070 aluminum bar is widely used in electronics, electrical appliances, automobiles, construction, aviation and other fields.

Product Parameters

Diameter	5-650mm or customized	Length	100-2000mm or customized
Certificate	ISO, SGS, BV
Standard	JIS, AISI, ASTM, GB, DIN, EN, etc.
Brand	1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc. 6000 Series: 6061, 6063, 6082, 6A02, etc. 7000 Series: 7050, 7475, 7075, etc. 8000 Series: 8A06, 8011, 8090, etc.
Surface	Coating, Embossing, Drawing, Polishing, Anodizing, etc.
OEM Service	Punching, Cutting special size, Making flat surface, Surface treatment, etc.
Delivery Time	Received 30% after deposit 7-15 working days
Application	Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware and other fields
Sample	Free Offers Sample
Packaging	Strapping, Plastic bag, Film, Wooden pallet Standard seaworthy export packing or according to customer requirement

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others: Each	Others: Total	Al: Min.
1050	0.25	0.40	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.50
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.60
1070	0.20	0.25	0.04	0.03	0.03	-	0.04	0.03	0.05	-	99.70
1100	0.95 Si Fee		0.05~0.20	0.05	-	-	0.1	-	0.05	0.15	99.0
2014	0.5~1.2	0.7	3.9~5.0	0.4~1.2	0.2~0.8	0.10	0.25	0.15	0.05	0.15	Allowance
2017	0.2~0.8	0.7	3.5~4.5	0.4~1.0	0.4~0.8	0.10	0.25	0.15	0.05	0.15	91.5 - 95.5
2024	0.50	0.50	3.8~4.9	0.3~0.9	1.2~1.8	0.10	0.25	0.15	0.05	0.15	Allowance
3003	0.60	0.70	0.05~0.20	1.0~1.5	-	-	0.10	-	0.05	0.15	Allowance
3A21	0.60	0.70	0.20	1.0-1.6	0.05	-	0.15	0.1-0.2	-	-	Allowance
3004	0.30	0.70	0.25	1.0~1.5	0.8~1.3	-	0.25	-	0.05	0.15	Allowance
3005	0.60	0.70	0.30	1.0~1.5	0.2~0.6	0.10	0.25	0.10	0.05	0.15	Allowance
3105	0.60	0.70	0.30	0.3~0.8	0.2~0.8	0.20	0.40	0.10	0.05	0.15	Allowance
5005	0.30	0.70	0.20	0.20	0.5~1.1	0.1	0.25	-	0.05	0.15	Allowance
5052	0.25	0.40	0.10	0.10	2.2~2.8	0.15~0.35	0.10	-	0.05	0.15	Allowance
5754	0.40	0.40	0.10	0.50	2.6~3.6	0.30	0.20	0.15	0.05	0.15	Allowance
5A05	0.50	0.50	0.10	0.3-0.6	4.8-5.5	-	0.20	-	0.05	0.05	Allowance
5083	0.40	0.40	0.10	0.4~1.0	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	Allowance
6061	0.40~0.8	0.70	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	Allowance
6082	0.70~1.3	0.50	0.10	0.4~1.0	0.6~1.2	0.25	0.20	0.10	0.05	0.15	Allowance
7075	0.40	0.50	1.2~2.0	0.30	2.1~2.9	0.18~0.28	5.1~6.1	0.20	0.05	0.15	Allowance

Mechanical Properties

Tensile Strength

(MPa)

Elongation Rate

(%)

Yield Strength

(MPa)

≥75

≥ 4.5

≥35

Physical Performance

Density	Melting Point	Modulus of Elasticity	Thermal Conductivity	Thermal Expansion
2.7 Kg/m³	640 °C	68 GPa	230 w/m K	23×10-6/K

Annealing State

Brand	Annealing State
1xxx: 1050, 1050A, 1060, 1100	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454	O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082	T4, T6, T451, T651
2xxx: 2024	T3, T351, T4
7xxx: 7075	T6, T651

Scope of Application

Aluminum Uses And Application Area
Food Packaging	Beverage can ends, cans, bottle caps, etc.
Building	Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
Transportation	Auto parts, passenger car bodies, aviation ships and air cargo containers.
Electronic Equipment	Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer Goods	Umbrellas, cooking utensils, sports equipment, etc
Other	Military, color coated aluminum plate

Product Application

Packaging and shipping

Factory Display

FAQ

1. What products do you supply?
We supply carbon steel, galvanized steel, pre-painted steel, stainless steel, copper, aluminum, and structural steel sections. Our product range includes sheets, coils, pipes, bars, strips, angles, channels, I-beams, and H-beams.

2. Can you provide customized specifications?
Yes. We can supply products in different materials, grades, thicknesses, widths, lengths, and surface finishes. Please send us your detailed specifications so we can confirm availability.

3. What processing services do you offer?
Depending on the product and project requirements, we can provide cutting, slitting, custom sizing, and other processing services. Please provide your drawings, dimensions, tolerances, and processing requirements with your inquiry.

4. How do you ensure product quality?
Products are supplied according to the material, dimensions, specifications, and quality requirements confirmed in the order. Please inform us before ordering if your project requires specific inspections, tests, or documents.
