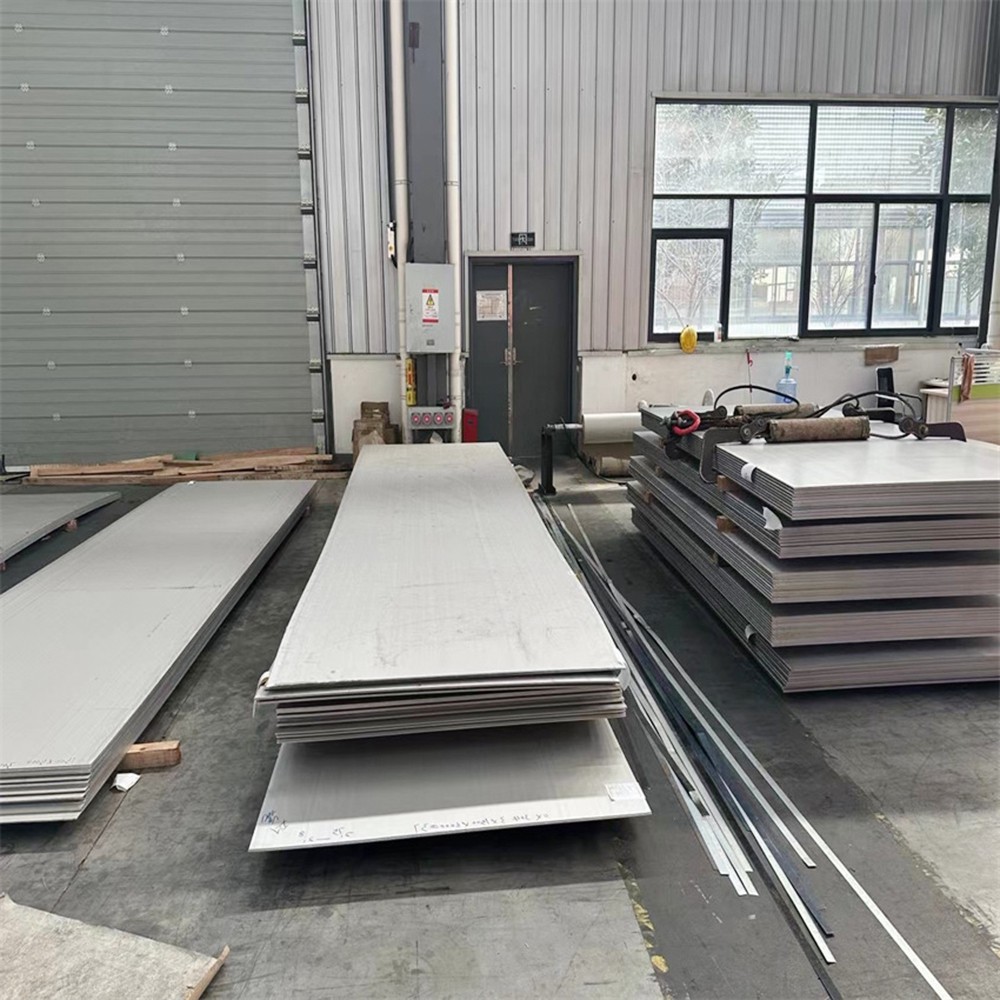

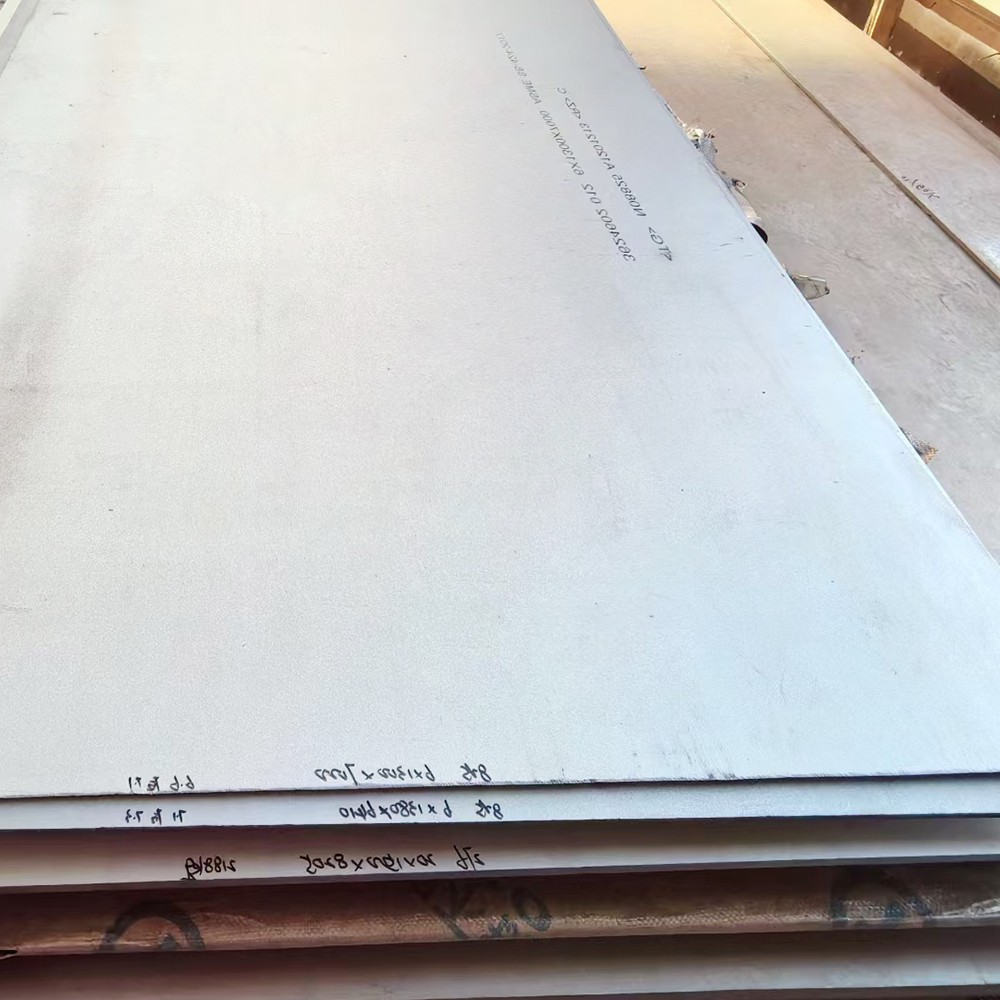

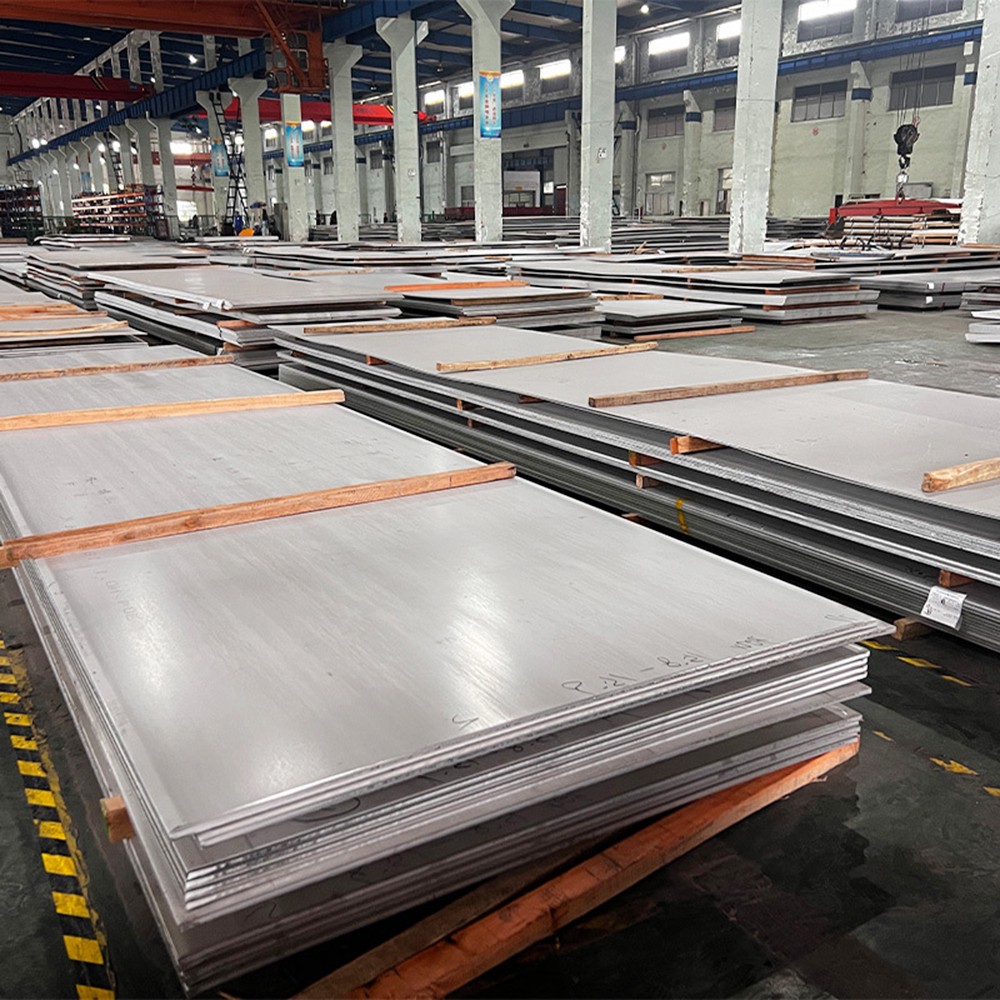

Name: 2507 Duplex Stainless Steel Plate
SKU: 0

HOME > PRODUCTS > Stainless Steel > Stainless Steel Plate > 2507 Duplex Stainless Steel Plate

2507 Duplex Stainless Steel Plate

2507 duplex stainless steel is a special ferritic-austenitic duplex stainless steel with excellent corrosion resistance. It achieves comprehensive protection against point corrosion, crevice corrosion and uniform corrosion through the unique ratio of chromium and molybdenum elements.

WhatsApp：+86 15275315165

Email：Irene@shouyuansteel.com

Product Description

2507 Duplex Stainless Steel Plate Description

2507 is an ultra-duplex stainless steel containing 25% chromium, 4% molybdenum and 7% nickel. In terms of chemical composition, the chromium and molybdenum content of 2507 stainless steel is relatively high, which leads to its super-strong corrosion resistance to various acids. The duplex construction of 2507 stainless steel gives it excellent resistance in the face of stress corrosion cracking. Cracks are an inevitable problem in construction and other related fields, and 2507 stainless steel exhibits excellent corrosion resistance in an environment containing chloride ions, which makes it ideal for construction and related industries. In addition to its excellent corrosion resistance, 2507 stainless steel also has excellent mechanical properties. It has high compressive strength, impact strength and low coefficient of thermal expansion, which makes it widely used in oil and gas industry, water treatment, fire protection, desalination equipment, mechanical parts and fuel gas purification equipment

Product Parameters

Product Name	2507 Duplex Stainless Steel Plate
Type	Plate
Thickness	0.3mm-200mm
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Standard	ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Scope of Application	Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts, food and beverage packaging, Kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc.
Certificate	ISO, SGS, BV, etc.
Production Technology	Hot Rolling, Cold Rolling
Edge Processing	Edging, Trimming

Chemical Composition

C	Si	Mn	Cr	Ni	Mo	S	P
≤ 0.03	≤ 0.8	≤ 1.2	24.0～26.0	6.0～8.0	3.0～5.0	≤ 0.02	≤ 0.035

Mechanical Properties

Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
≥795	≥550	≥15	≤ 310HB

Physical Performance

Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10^-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(ΜΩ. cm)
7.75	200	13.0	17.0	80

Surface Selection

Product Application

Packaging and shipping

Factory Display

FAQ

1. What products do you supply?
We supply carbon steel, galvanized steel, pre-painted steel, stainless steel, copper, aluminum, and structural steel sections. Our product range includes sheets, coils, pipes, bars, strips, angles, channels, I-beams, and H-beams.

2. Can you provide customized specifications?
Yes. We can supply products in different materials, grades, thicknesses, widths, lengths, and surface finishes. Please send us your detailed specifications so we can confirm availability.

3. What processing services do you offer?
Depending on the product and project requirements, we can provide cutting, slitting, custom sizing, and other processing services. Please provide your drawings, dimensions, tolerances, and processing requirements with your inquiry.

4. How do you ensure product quality?
Products are supplied according to the material, dimensions, specifications, and quality requirements confirmed in the order. Please inform us before ordering if your project requires specific inspections, tests, or documents.
