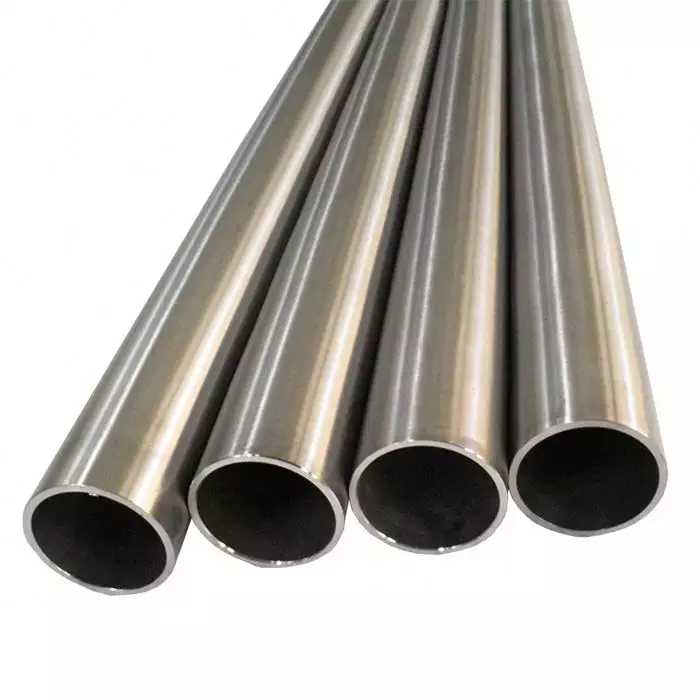

316L Stainless Steel Pipe

316L stainless steel has a lower proportion of carbon in its composition, the amount of carbon cannot go over 0.03%. This lowers the chance of carbon precipitation, making it an ideal option for welding to ensure maximum corrosion resistance.

WhatsApp：+86 15275315165

Email：Irene@shouyuansteel.com

Product Description

316L Stainless Steel Pipe Description

316L stainless steel pipe has a lower carbon content than 316 stainless steel pipe and is used when welding is needed. The lower carbon content greatly reduces the precipitation of carbides in the heat-affected zone close to the weld, and the precipitation of carbides is strongly associated with intergranular corrosion of stainless steel in some environments. Basically, there is no need to anneal weld joints prior to using the completed metal form. 316L stainless steel pipe is the second most prevalent stainless steel after 304, and it has better corrosion resistance than 304. High temperature resistance is also better, up to 1000 degrees. 316L stainless steel plate is a universal stainless steel material, with better rust resistance than 200 series stainless steel material. 316L stainless steel pipe is widely used in the chemical industry because of its excellent corrosion resistance.

Product Parameters

Product Name		316L Stainless Steel Pipe
Type		Steel Pipe
Outer diameter	Round Tube	4mm-200mm
	Square Tube	1010mm-100100mm
	Rectangular Tube	1020mm-50100mm
Wall Thickness		0.6mm-6.0mm
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc.
Scope of Application		Common applications for stainless steel pipes include food processing, Textile operations, Breweries, Water treatment plants, Oil and gas processing, Fertilizers and pesticides, Chemical applications, Construction, Pharmaceuticals, Auto parts, etc.
Certificate		ISO, SGS, BV, etc.
Production Technology		Hot Rolling, Cold Rolling
Edge Processing		Edging, Trimming

Chemical Composition

C	Si	Mn	Cr	Ni	S	P	Mo
≤ 0.03	≤1.0	≤ 2.0	16.0～18.0	10.0～14.0	≤ 0.03	≤ 0.045	2.0～3.0

Mechanical Properties

Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
≥480	≥177	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV

Physical Performance

Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10^-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(ΜΩ. cm)
7.99	193	16.0	16.2	74

Product Application

Packaging and shipping

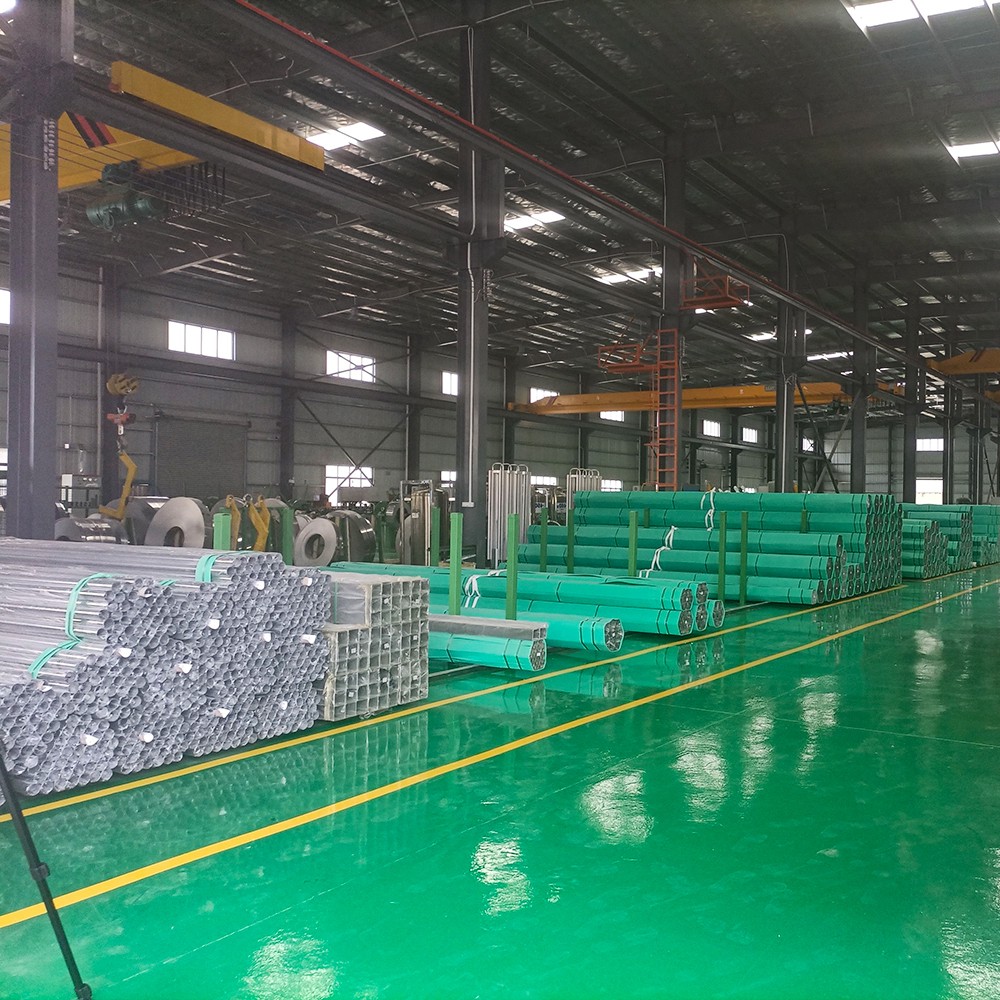

Factory Display

FAQ

1. What products do you supply?
We supply carbon steel, galvanized steel, pre-painted steel, stainless steel, copper, aluminum, and structural steel sections. Our product range includes sheets, coils, pipes, bars, strips, angles, channels, I-beams, and H-beams.

2. Can you provide customized specifications?
Yes. We can supply products in different materials, grades, thicknesses, widths, lengths, and surface finishes. Please send us your detailed specifications so we can confirm availability.

3. What processing services do you offer?
Depending on the product and project requirements, we can provide cutting, slitting, custom sizing, and other processing services. Please provide your drawings, dimensions, tolerances, and processing requirements with your inquiry.

4. How do you ensure product quality?
Products are supplied according to the material, dimensions, specifications, and quality requirements confirmed in the order. Please inform us before ordering if your project requires specific inspections, tests, or documents.
