Name: 309/309S Stainless Steel Bar
SKU: 0

HOME > PRODUCTS > Stainless Steel > Stainless Steel Bar > 309/309S Stainless Steel Bar

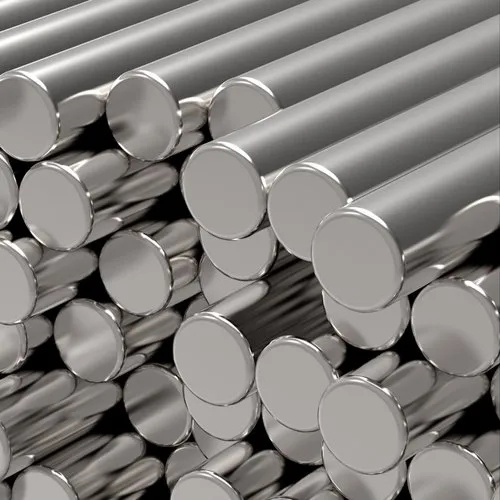

309/309S Stainless Steel Bar

309 stainless steel is a stainless steel material featured by excellent corrosion resistance and high temperature performance. 309 stainless steel bars are widely used as manufacturing parts in aviation, chemical industry, petroleum, food processing fields

WhatsApp：+86 15275315165

Email：Irene@shouyuansteel.com

Product Description

309/309S Stainless Steel Bar Description

309 stainless steel bar is made of an austenitic stainless steel containing substantial chromium and nickel content. 309 stainless steel bars are highly resistant to various corrosive media, including acid, alkali, salt and other solutions, as well as organic solvents. They can still show outstanding corrosion resistance at high temperatures and can work stably for a long time in high-temperature environments. So high-temperature equipment in aviation, chemical industry is where they are often adopted. 309 stainless steel bars can be formed and welded through various processing methods due to its outstanding processing performance. Lastly, 309 stainless steel bars are non-magnetic and suitable as manufacturing parts and components without magnetic requirements.

Product Parameters

Product Name		309/309S Stainless Steel Bar
Type		Steel Bar
Outer Diameter	Round Bar	4mm-500mm
	Hexagon Bar	18mm-57mm (11/16″ to 2-3/4″)
	Square Bar	18mm-47mm (11/16″ to 1-3/4″)
	Flat Steel	1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Mattness Surface Treatment, No. 4. BA, etc.
Scope of Application		Stainless steel bars are used in a variety of industries such as shipbuilding, Defense, Automotive, Textiles, Paper and pulp, Manufacturing, Cement, Heavy earthmoving equipment and construction, etc.

Chemical Composition

C	Si	Mn	Cr	Ni	S	P
≤ 0.08	≤ 0.75	≤ 2.0	22.0～24.0	12.0～15.0	≤ 0.03	≤ 0.045

Mechanical Properties

Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
≥515	≥205	≥35	≤ 217HB

Physical Performance

Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10^-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(ΜΩ. cm)
7.98	200	14.9	15.6	78

Product Application

Packaging and shipping

Factory Display

FAQ

1. What products do you supply?
We supply carbon steel, galvanized steel, pre-painted steel, stainless steel, copper, aluminum, and structural steel sections. Our product range includes sheets, coils, pipes, bars, strips, angles, channels, I-beams, and H-beams.

2. Can you provide customized specifications?
Yes. We can supply products in different materials, grades, thicknesses, widths, lengths, and surface finishes. Please send us your detailed specifications so we can confirm availability.

3. What processing services do you offer?
Depending on the product and project requirements, we can provide cutting, slitting, custom sizing, and other processing services. Please provide your drawings, dimensions, tolerances, and processing requirements with your inquiry.

4. How do you ensure product quality?
Products are supplied according to the material, dimensions, specifications, and quality requirements confirmed in the order. Please inform us before ordering if your project requires specific inspections, tests, or documents.
