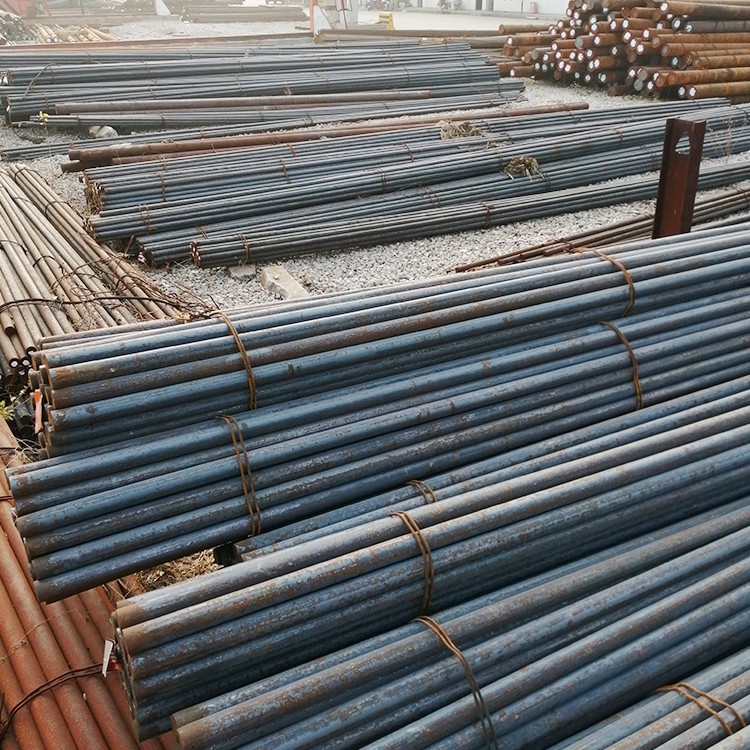

AISI/SAE 4130 Alloy Steel Bar

AISI 4130 carbon steel bar has excellent strength, toughness and processability. Through normalizing and quenching treatment, the steel can achieve high strength and strength. In addition, the bars have excellent weldability and forgeability.

WhatsApp：+86 15275315165

Email：Irene@shouyuansteel.com

Product Description

AISI/SAE 4130 Alloy Steel Bar Description

AISI 4130 steel bar is made of high-strength, low-alloy steel that is mainly used in high-temperature, high-pressure, and high-strength industrial fields. 4130 steel is a chromium-molybdenum low-alloy steel that has much higher strength and toughness than typical steel grades. Additionally, the reduced carbon content of this alloy, while limiting strength through thickness, provides better weldability than its 4140 steel counterpart. These properties make AISI 4130 steel bar a popular choice in the aerospace industry for manufacturing commercial and military aircraft components that require high strength and low weight.

Product Parameters

Product Name	AISI/SAE 4130 Alloy Steel Bar
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI, etc.
Common Round Bar Specifications	3.0-50.8 mm, Over 50.8-300mm
Flat Steel Common Specifications	6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm
Hexagon Bar Common Specifications	AF5.8mm-17mm
Square Bar Common Specifications	AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm
Length	1-6meters, Size Accept Custom
Diameter(mm)	Hot Rolling Round Bar	25-600	Cold Rolling Square Bar	6-50.8
	Hot Rolling Square Bar	21-54	Cold Rolling Hexagon Bar	9.5-65
	Cold Rolling Round bar	6-101.6	Forged Rebar	200-1000
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Chemical Composition

Grade	Mn	S	C	P	Si	Cr	Mo
AISI 4130	0.4-0.8	0.04	0.28-0.33	0.035	0.15-0.35	0.8-1.1	0.15-0.25

Mechanical Properties

Grade	Tensile Strength N/mm2 Min	Yield Strength N/mm2 Min	A, % Min	Z, % Min
AISI 4130	930	735	12	50

Scope of Application

SAE 4130 round bars are commonly used in structural applications, including brackets, gears, and some aircraft exteriors.

Product Application

Packaging and shipping

Factory Display

FAQ

1. What products do you supply?
We supply carbon steel, galvanized steel, pre-painted steel, stainless steel, copper, aluminum, and structural steel sections. Our product range includes sheets, coils, pipes, bars, strips, angles, channels, I-beams, and H-beams.

2. Can you provide customized specifications?
Yes. We can supply products in different materials, grades, thicknesses, widths, lengths, and surface finishes. Please send us your detailed specifications so we can confirm availability.

3. What processing services do you offer?
Depending on the product and project requirements, we can provide cutting, slitting, custom sizing, and other processing services. Please provide your drawings, dimensions, tolerances, and processing requirements with your inquiry.

4. How do you ensure product quality?
Products are supplied according to the material, dimensions, specifications, and quality requirements confirmed in the order. Please inform us before ordering if your project requires specific inspections, tests, or documents.
